Advanced Export Module
Features

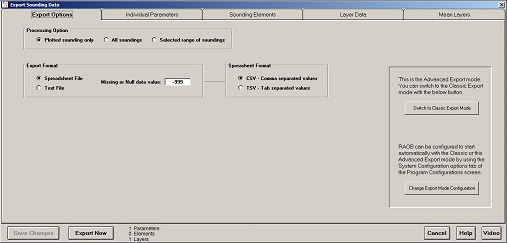

Tab 1 controls format and style
- Export one, all, or a selected range of soundings.
- Export in Spreadsheet or Text mode.
- Export Spreadsheet data in either CSV or TSV format.
![RAOB Exporter 1 RAOB Exporter 1](assets/images/RAOB_Exporter1_Sm.jpg)

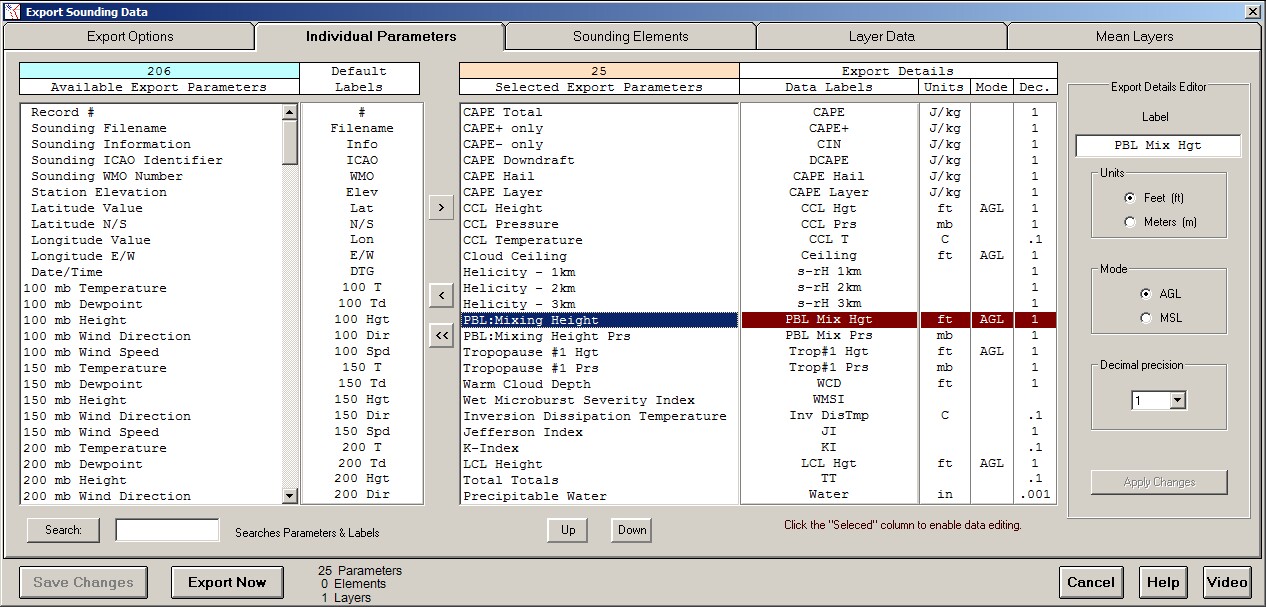

Tab 2 identifies which Parameters are exported
- Select from over 220 export parameters.
- Arrange parameter list in any sequence order.
- Specify parameter units, mode, and decimal precision.
![RAOB Exporter 2 RAOB Exporter 2](assets/images/RAOB_Exporter2_Sm.jpg)

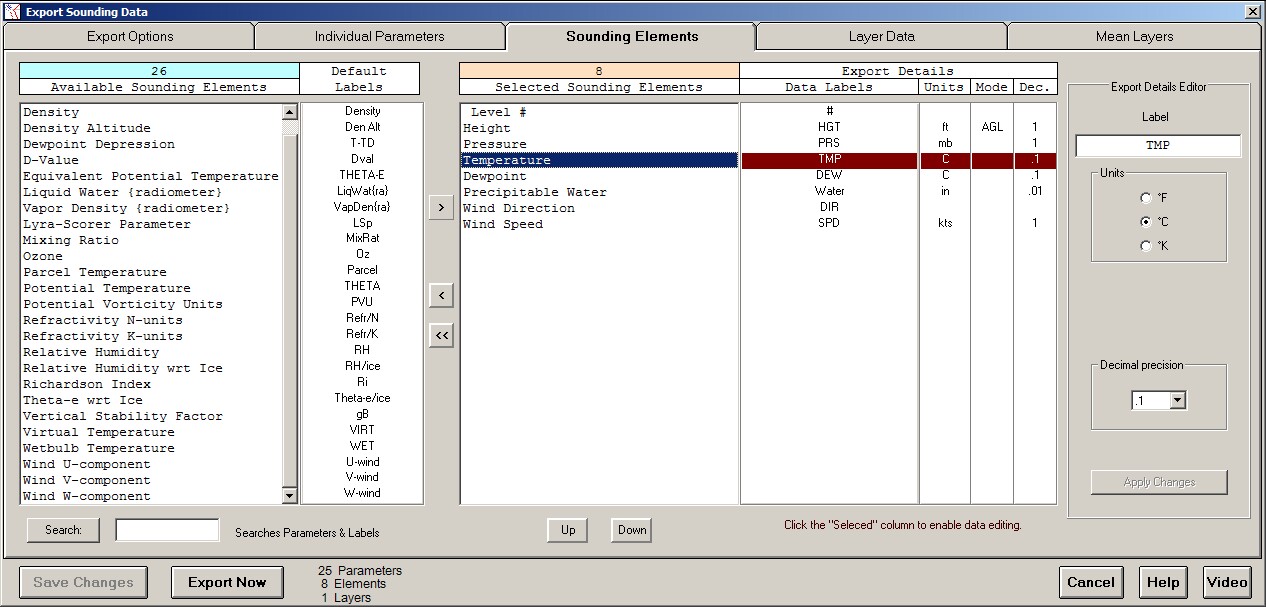

Tab 3 identifies which Elements are exported
- Select from over 30 export elements.
- Arrange element list in any sequence order.
- Specify element units, mode, and decimal precision.
![RAOB Exporter 3 RAOB Exporter 3](assets/images/RAOB_Exporter3_Sm.jpg)

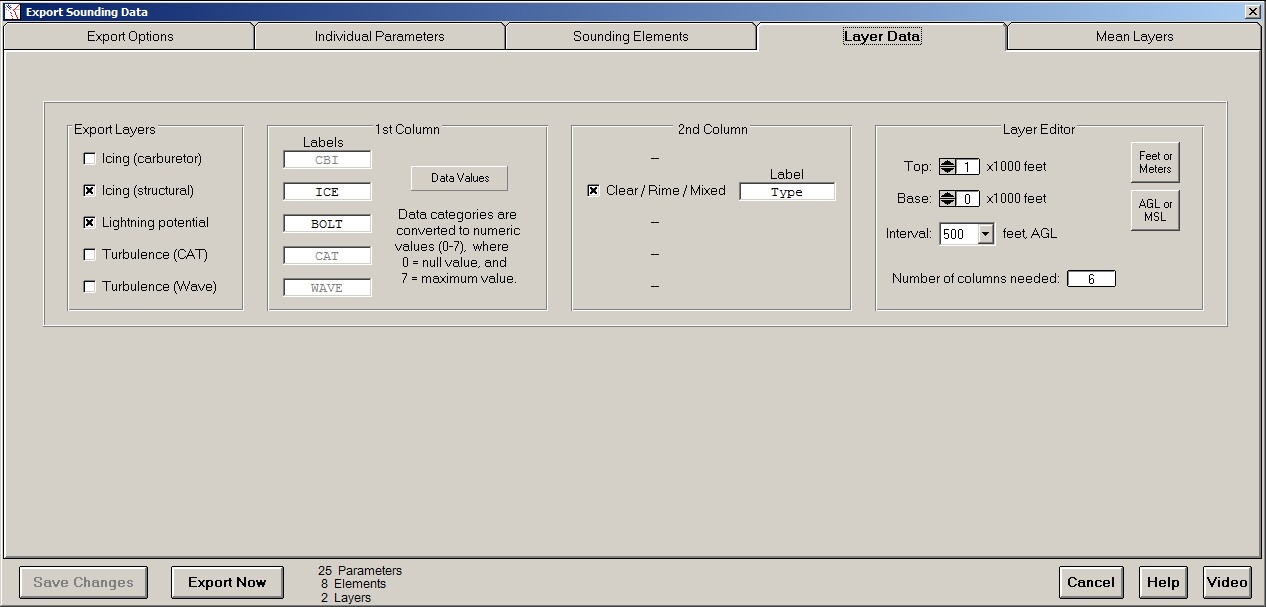

Tab 4 identifies which Layers are exported
- Select up to 5 sets of layer data
- Icing / carburetor (induction)
- Icing / structural (wing)
- Lightning potential
- Turbulence: CAT (clear air turbulence)
- Turbulence: Wave (mountain / lee wave)
- Identify layer range and interval with numeric value descriptors.
![RAOB Exporter 4 RAOB Exporter 4](assets/images/RAOB_Exporter4_Sm.jpg)

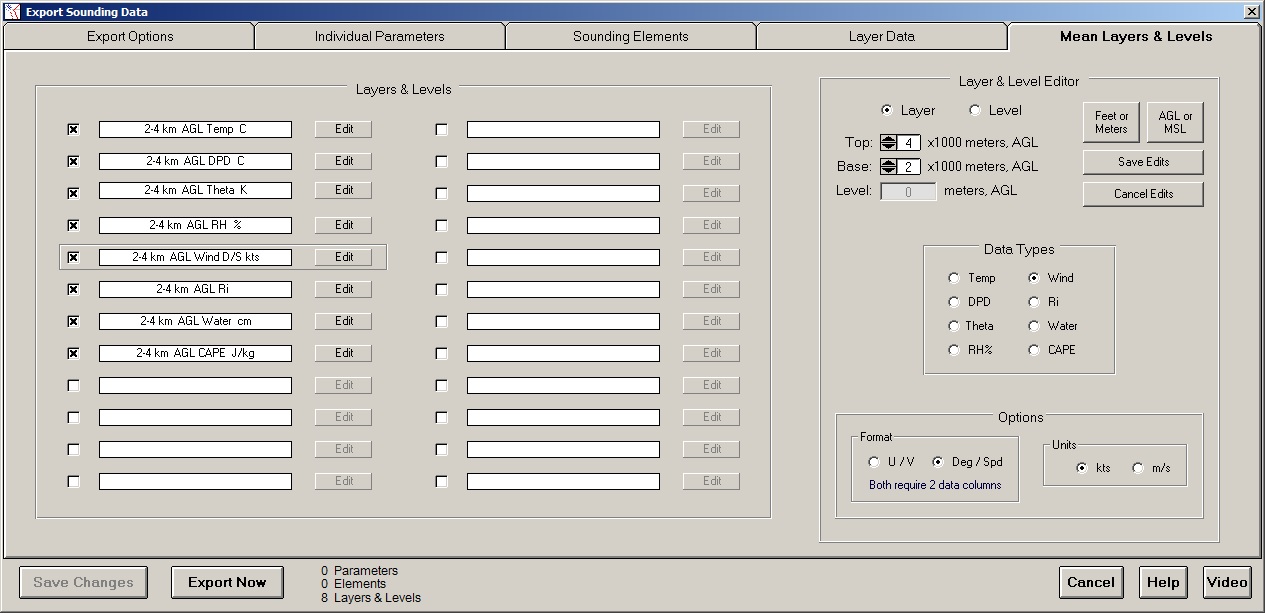

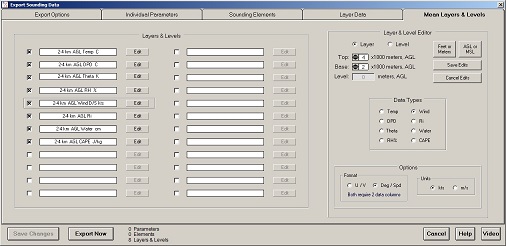

Tab 5 identifies exported Mean Layers & Levels
- Select up to 12 mean wind layers and/or wind levels.
- Layer depth, units, and mode are user-configurable.
- Wind format and speed are also configurable.
![RAOB Exporter 5 RAOB Exporter 5](assets/images/RAOB_Exporter5_Sm.jpg)

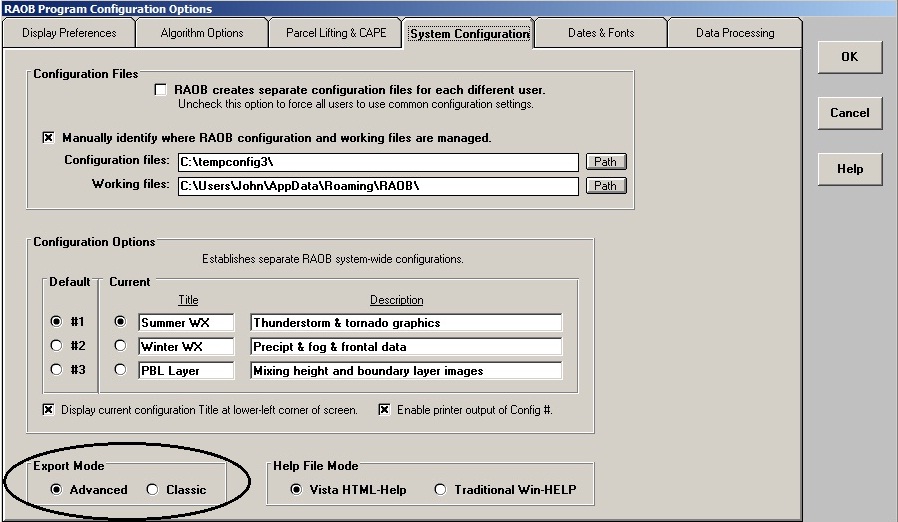

Set the default Export mode from the System Configuration screen.
![RAOB Exporter Mode RAOB Export Mode](assets/images/RAOB_ExportMode_Sm.jpg)
